Weeemake 12 in 1 Robots Kit Remote Control Stem Education Programable Coding Robot Kit for School Kids

1 / 5

Weeemake 12 in 1 Robots Kit Remote Control Stem Education Programable Coding Robot Kit for School Kids

Send Inquiry

Product Description

Product Description

Specification	Details
Product Name	12 in 1 WeeeBot RobotStorm STEAM Programming Robot Kit
Material	Metal, Plastic
Function	Program, DIY, Assemble, Remote Control, Line-following, Obstacle Avoidance, Voice Control, Wireless programming
Electronics	RGB ultrasonic sensor, Double-way line-following sensor, Gyroscope sensor, Limit switch module, Light sensor, Sound sensor, IR receiver, RGB LED -8 (pins), Encoder/DC motor driver, IR remote control, Bluetooth 4.1 module, Bluetooth Dongle module
Mechanical Components	Over 400pcs
Controller	ELF
Communication	USB port, Bluetooth, 2.4G Wireless
Motor drive	10 ways (M1-M10)
Motor	4
Robot Forms	12 forms are provided

What is 12 in 1 WeeeBot Robotstorm?

The 12-in-1 WeeeBot Robotstorm STEAM Robot Kit is a multi-functional DIY ultimate STEAM robot kit. It has more than 450 parts and contains 12+ cool pre-set forms.

Multiple types of metal robot chassis, robot arm and gripper structure. A super robot DIY kit for school students. 28 lessons guide for programming, step by step graphical and animation assembly guide.

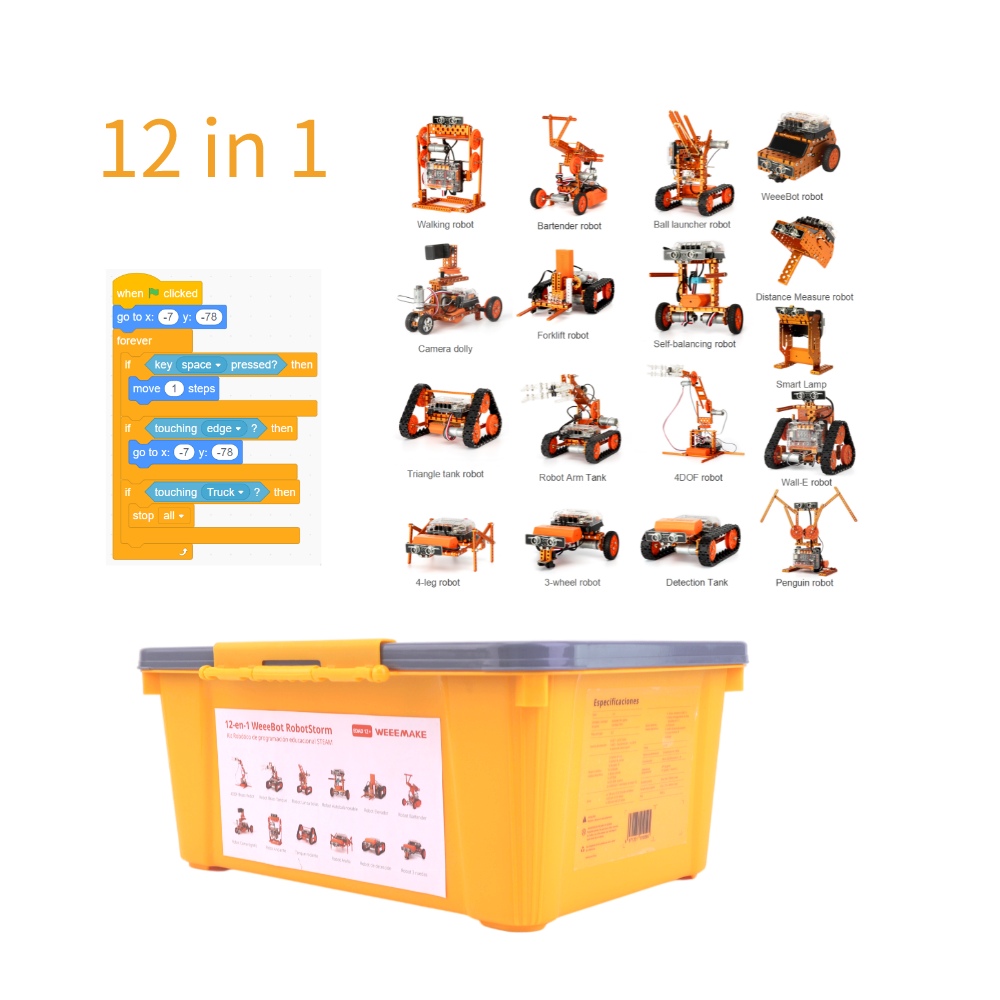

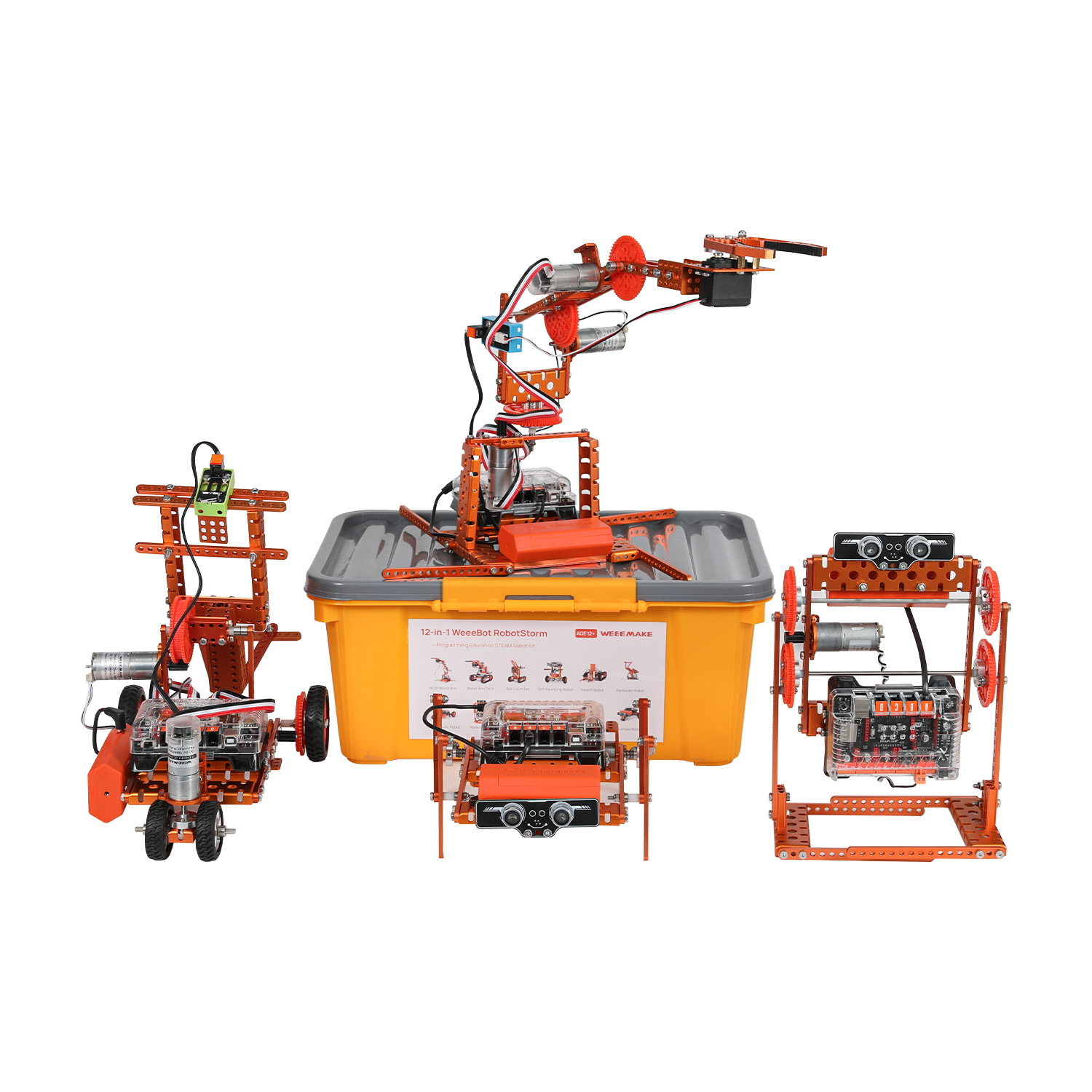

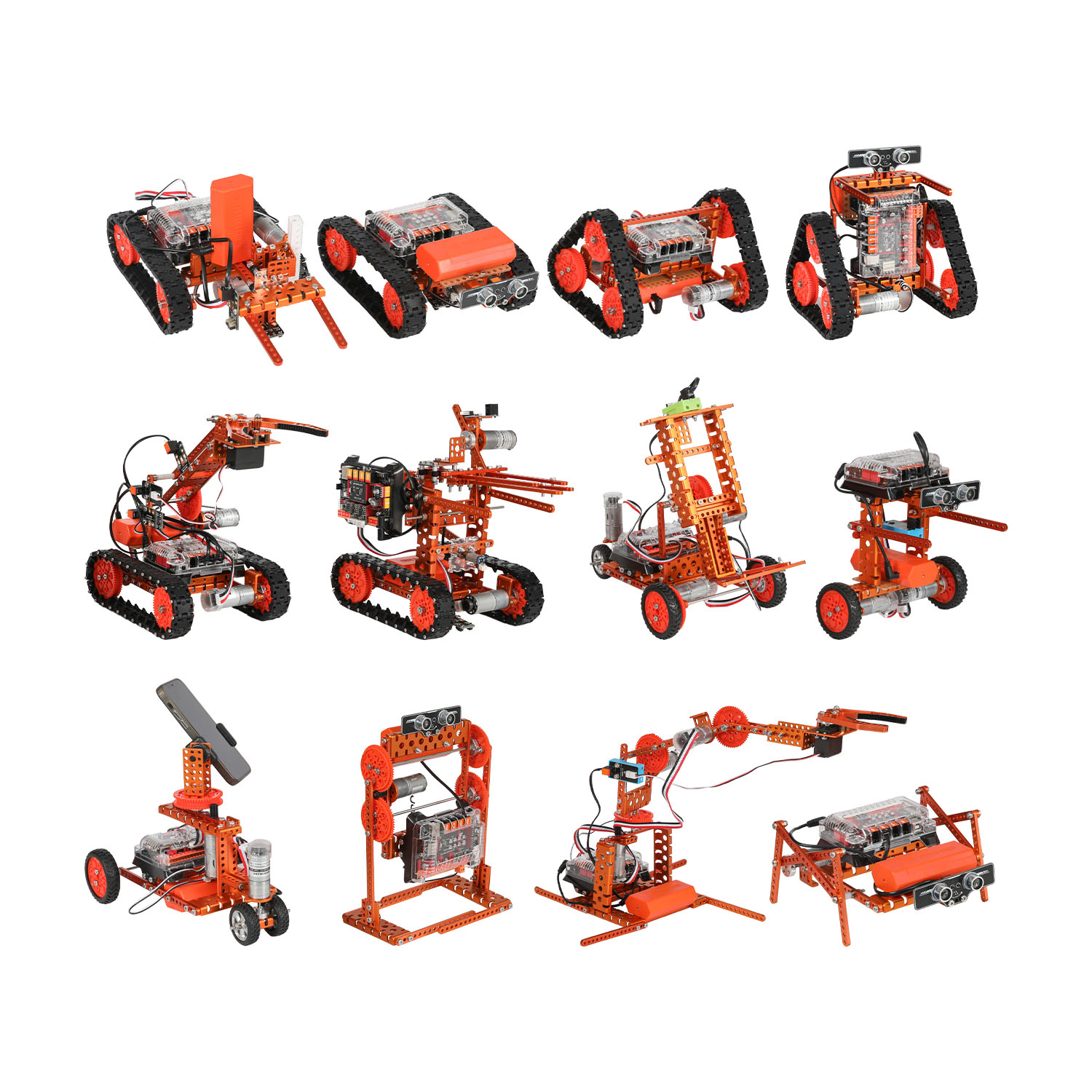

Twelve-in-One Building Forms:

Walking Robot, Forklift, Ball Launcher Robot, Robot Arm Tank, Robot Arm, Bartender Robot, Camera Dolly, Rolling Tank, Self-balancing Robot, Four Leg Robot, Three Wheel Car, Detection Robot.

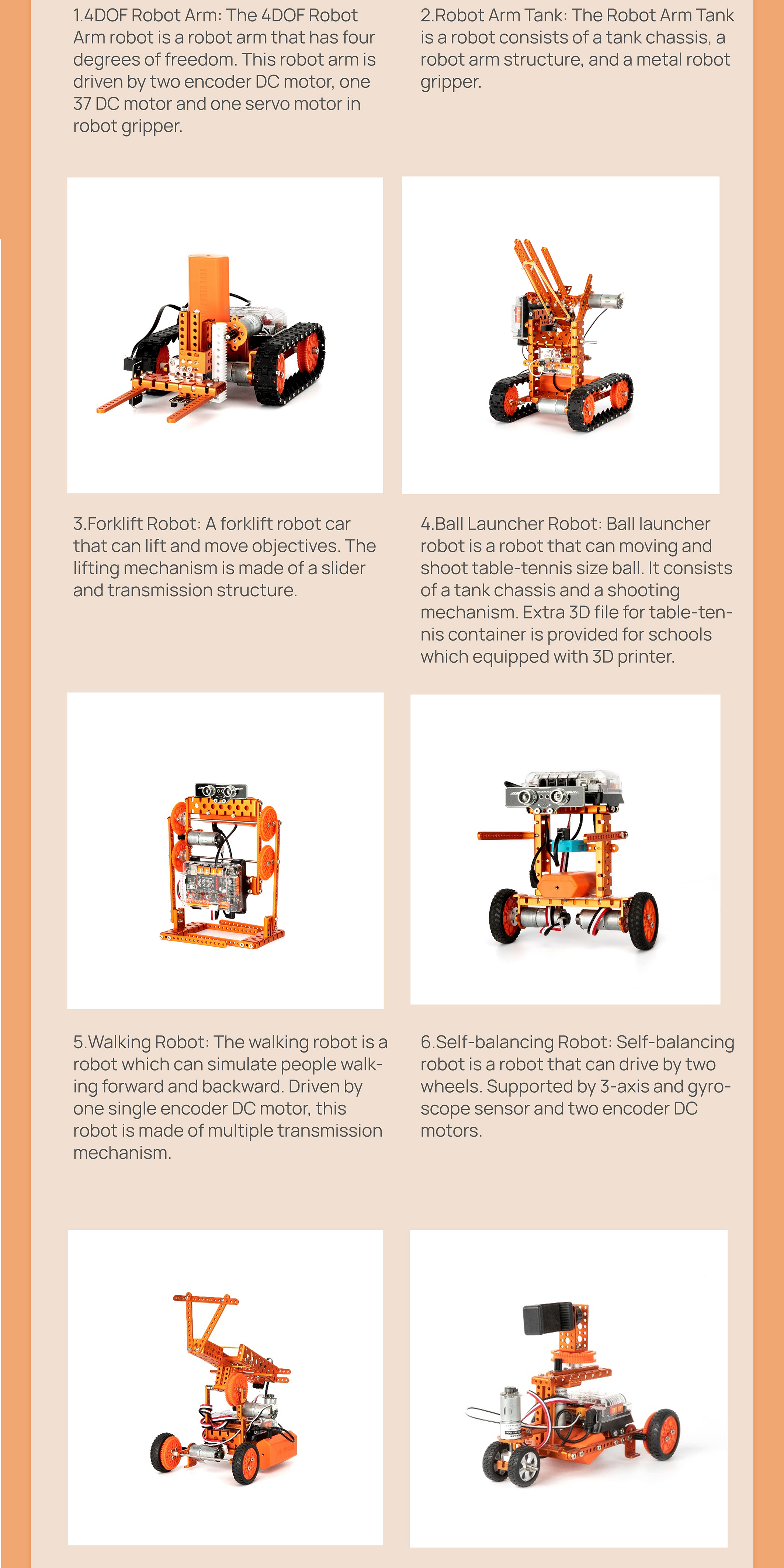

Twelve-in-One Pre-set Forms

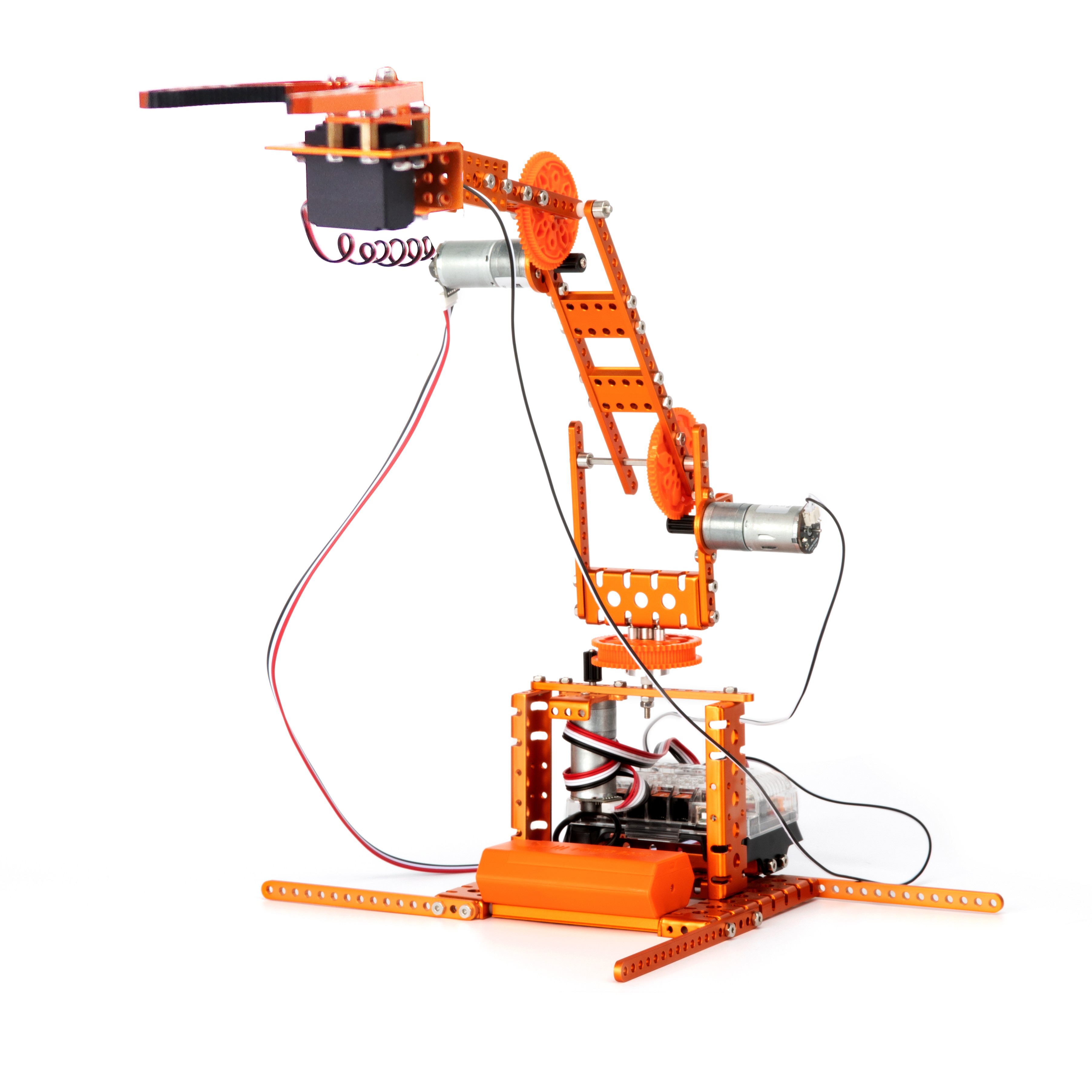

1. 4DOF Robot Arm

The 4DOF Robot Arm robot is a robot arm that has four degrees of freedom. This robot arm is driven by two encoder DC motor, one 37 DC motor and one servo motor in robot gripper.

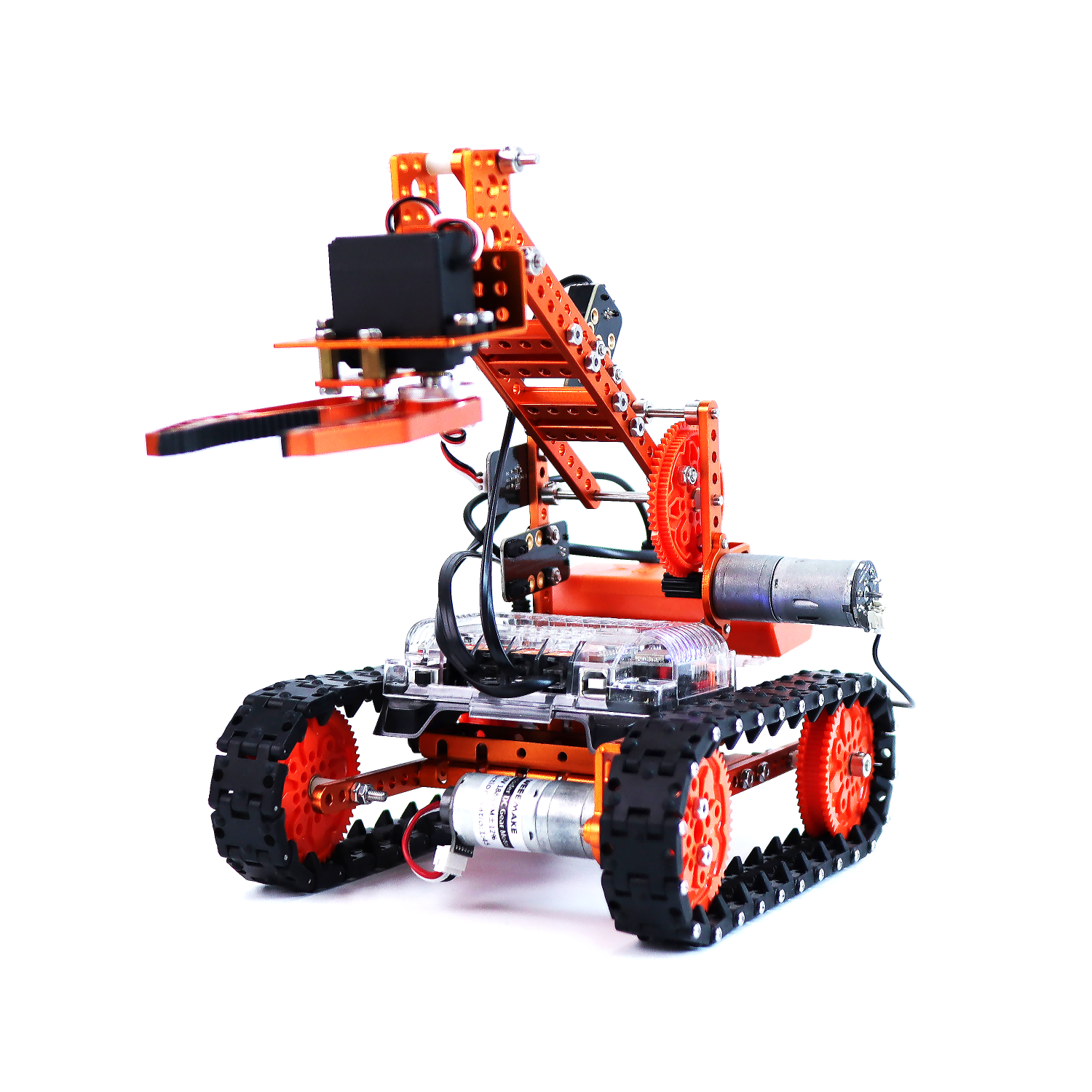

2. Robot Arm Tank

The Robot Arm Tank is a robot consists of a tank chassis, a robot arm structure, and a metal robot gripper.

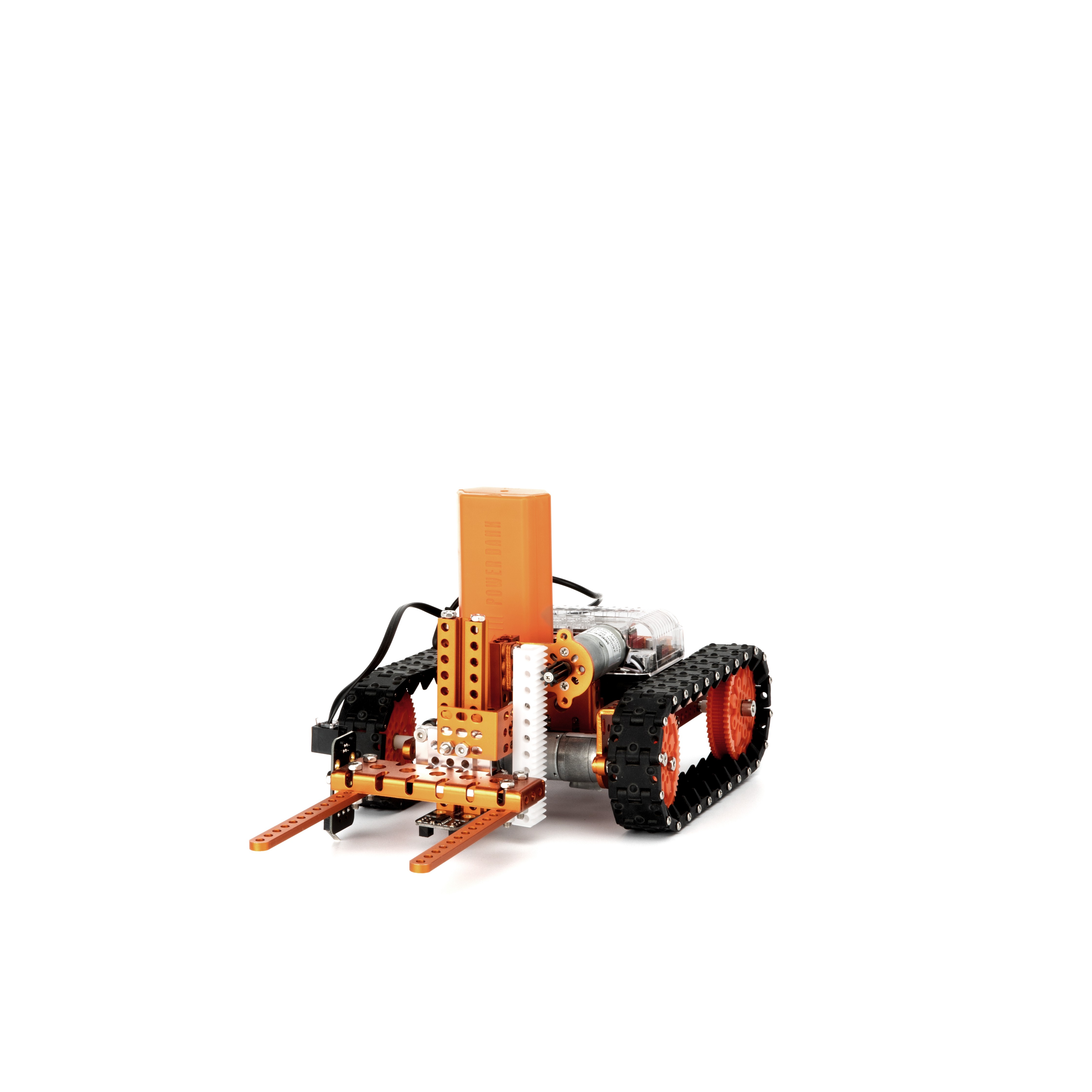

3. Forklift Robot

A forklift robot car that can lift and move objectives. The lifting mechanism is made of a slider and transmission structure.

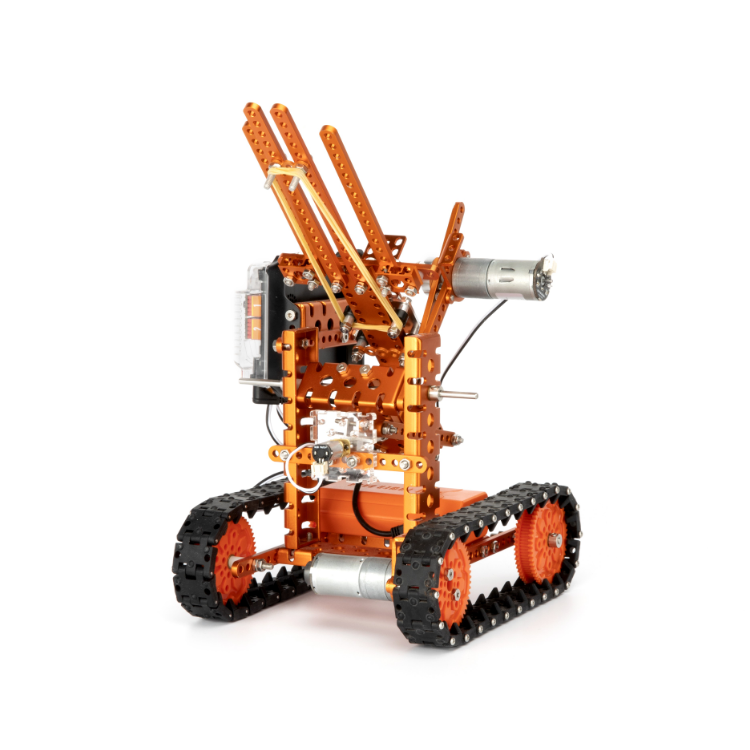

4. Ball Launcher Robot

Ball launcher robot can move and shoot table-tennis size balls. It consists of a tank chassis and a shooting mechanism. Extra 3D file for table-tennis container is provided.

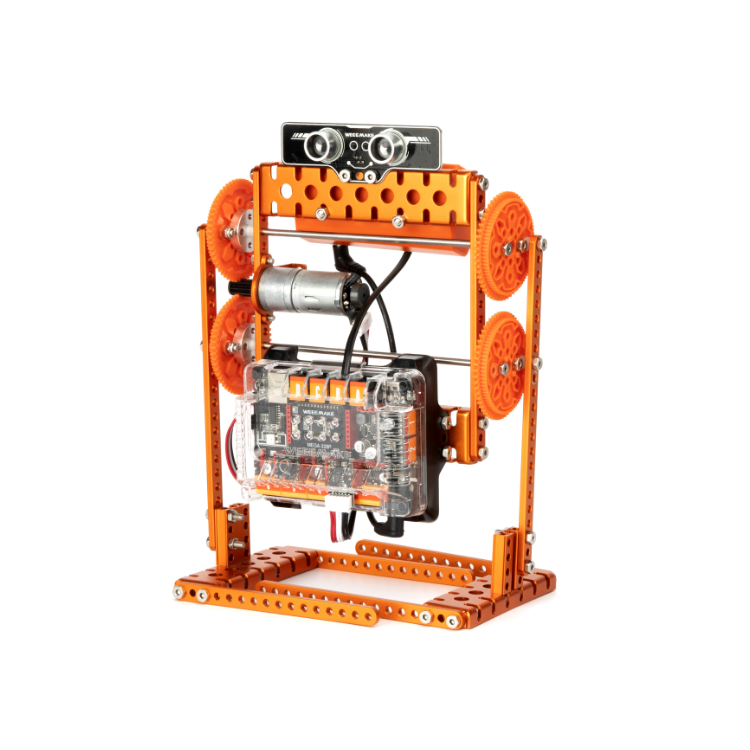

5. Walking Robot

The walking robot simulates people walking forward and backward. Driven by one single encoder DC motor, this robot is made of multiple transmission mechanisms.

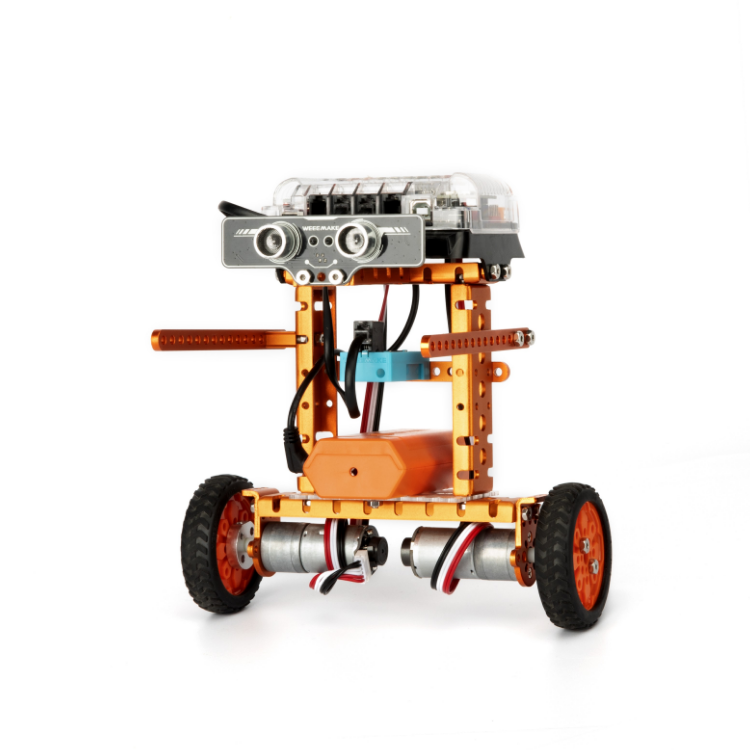

6. Self-balancing Robot

Self-balancing robot is a robot that drives on two wheels. Supported by a 3-axis gyroscope sensor and two encoder DC motors.

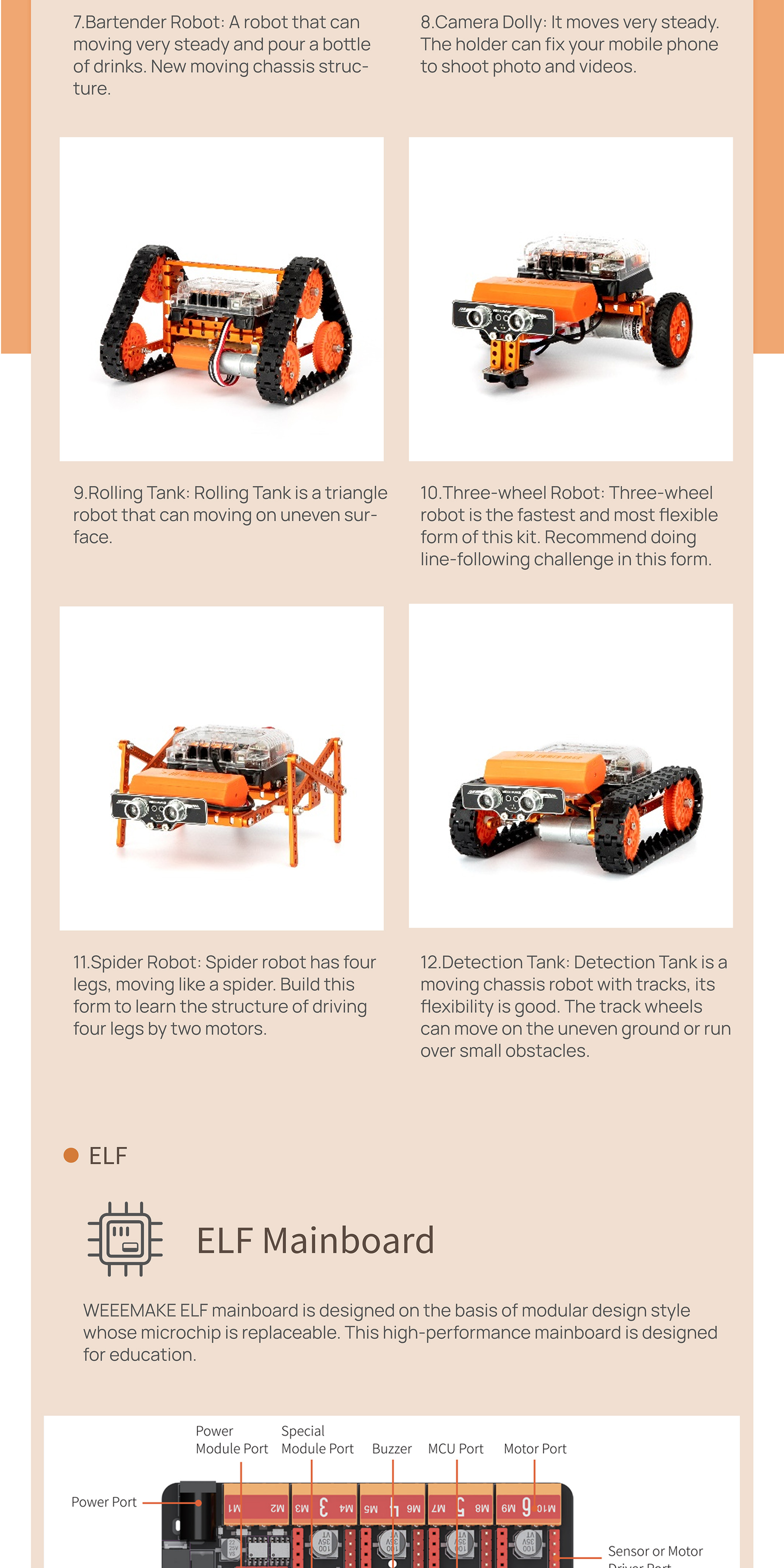

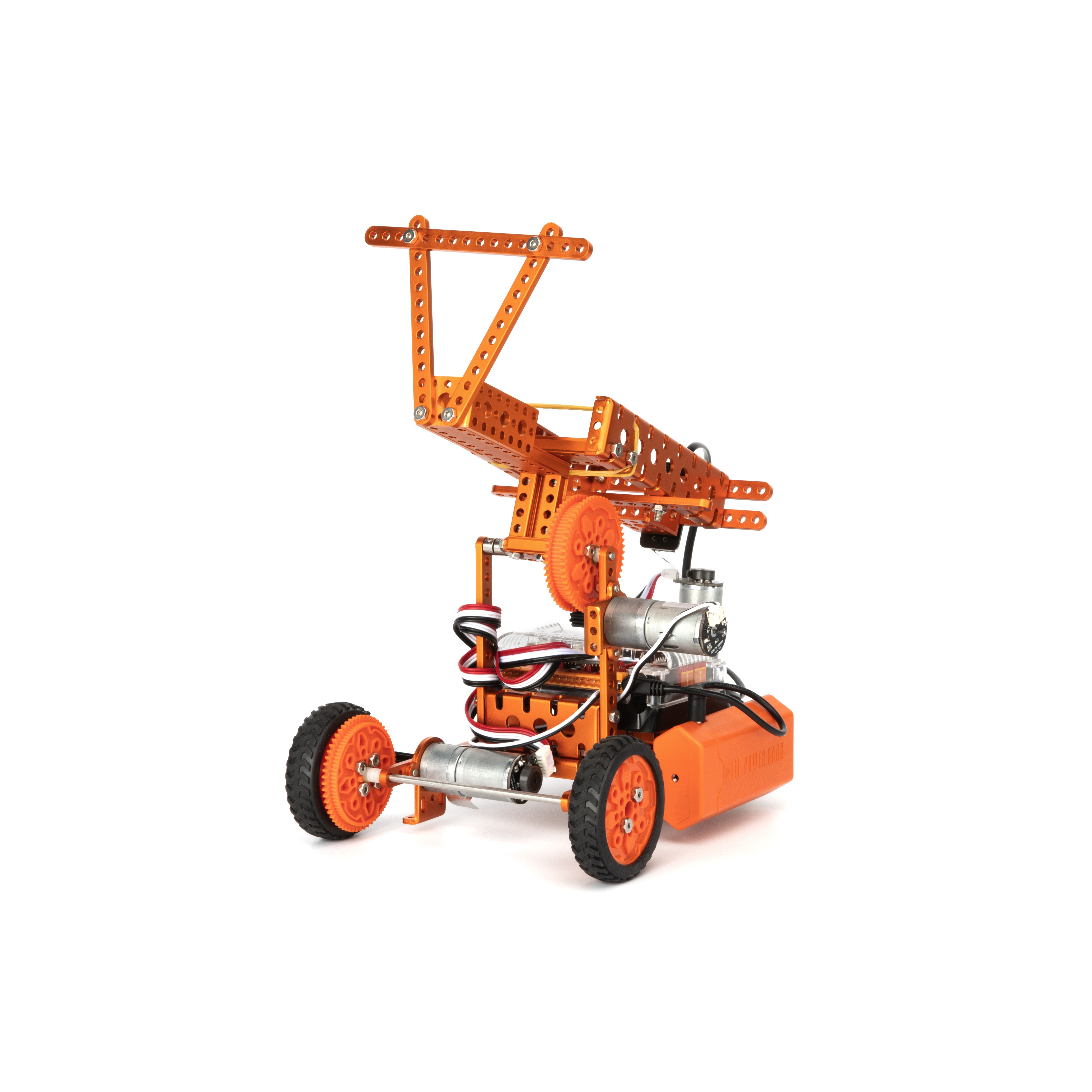

7. Bartender Robot

A robot that moves very steadily and can pour a bottle of drink. Features a newly designed moving chassis structure.

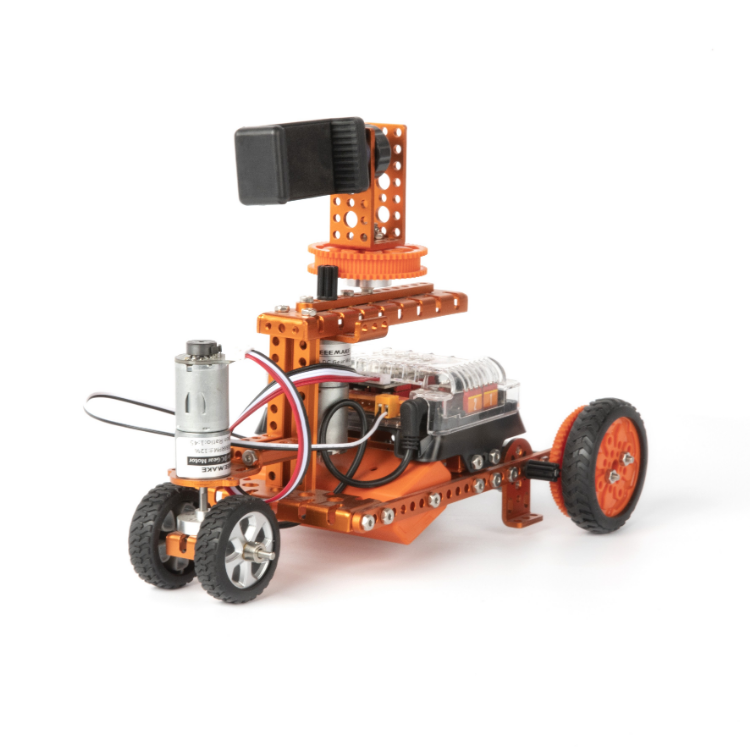

8. Camera Dolly

It moves very steadily. The holder can fix your mobile phone to shoot photos and videos.

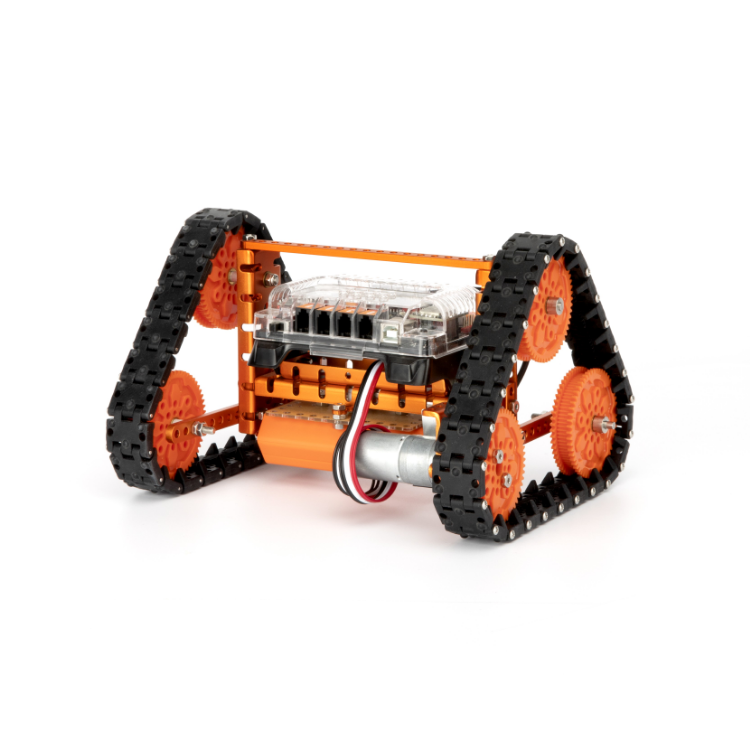

9. Rolling Tank

Rolling Tank is a triangle robot that can move smoothly on uneven surfaces.

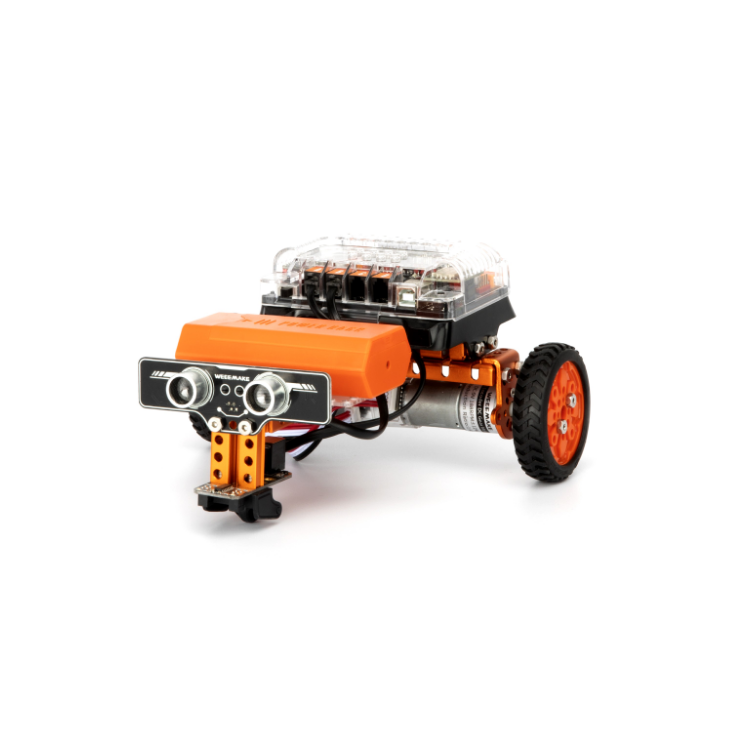

10. Three-wheel Robot

Three-wheel robot is the fastest and most flexible form of this kit. Highly recommended for line-following challenges.

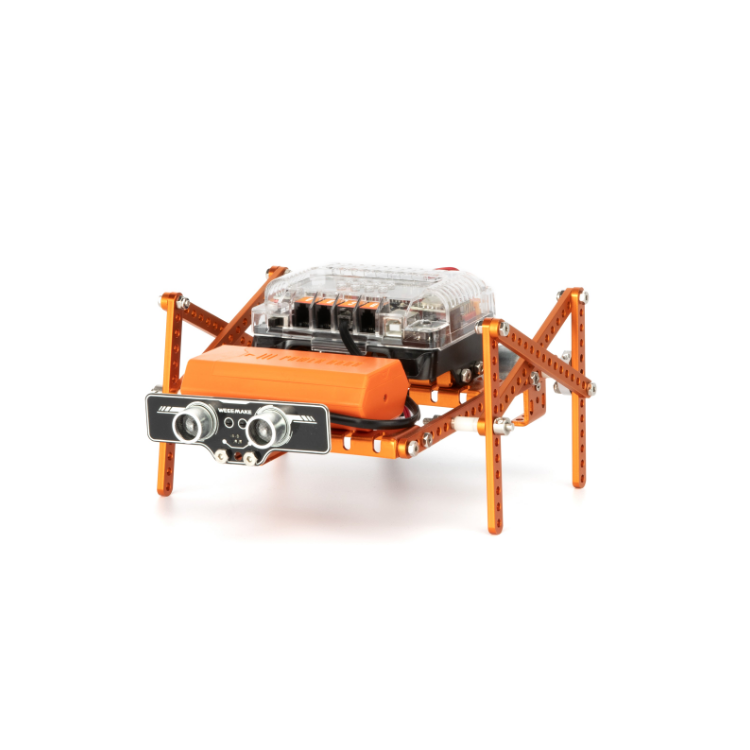

11. Spider Robot

Spider robot has four legs and moves like a spider. Build this form to learn the structure of driving four legs with two motors.

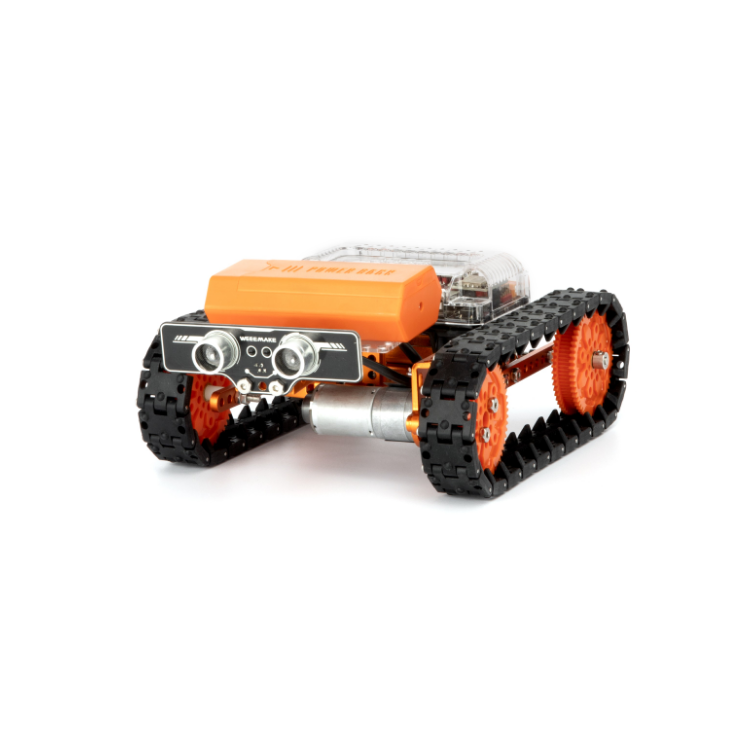

12. Detection Tank

Detection Tank is a moving chassis robot with tracks. The track wheels allow it to move on uneven ground or run over small obstacles easily.

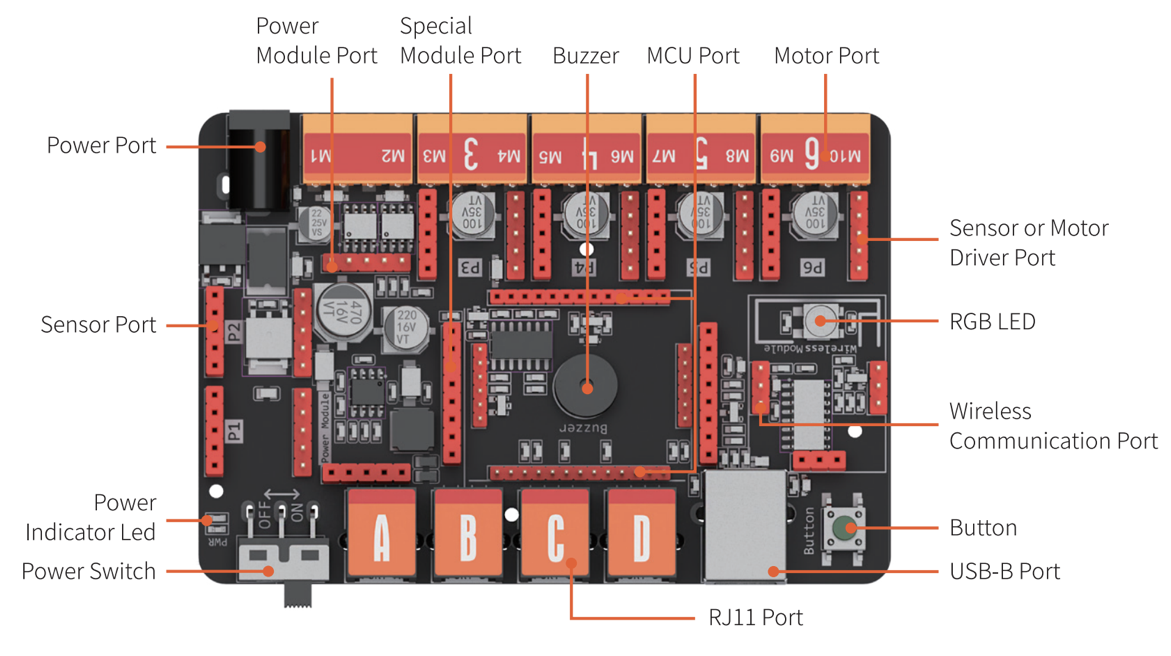

ELF Mainboard

WEEEMAKE ELF mainboard is designed on the basis of modular design style whose microchip is replaceable. This high-performance mainboard is designed specifically for STEAM education.

Replaceable microchip: Supports ATMEGA-328P, ESP32 chips, etc.
Unified Ports: Same port style for motor drivers and sensor pins, making connections easy and error-proof.
Easy Coding: Supports flexible wiring setups and works seamlessly with WeeeCode and Arduino.

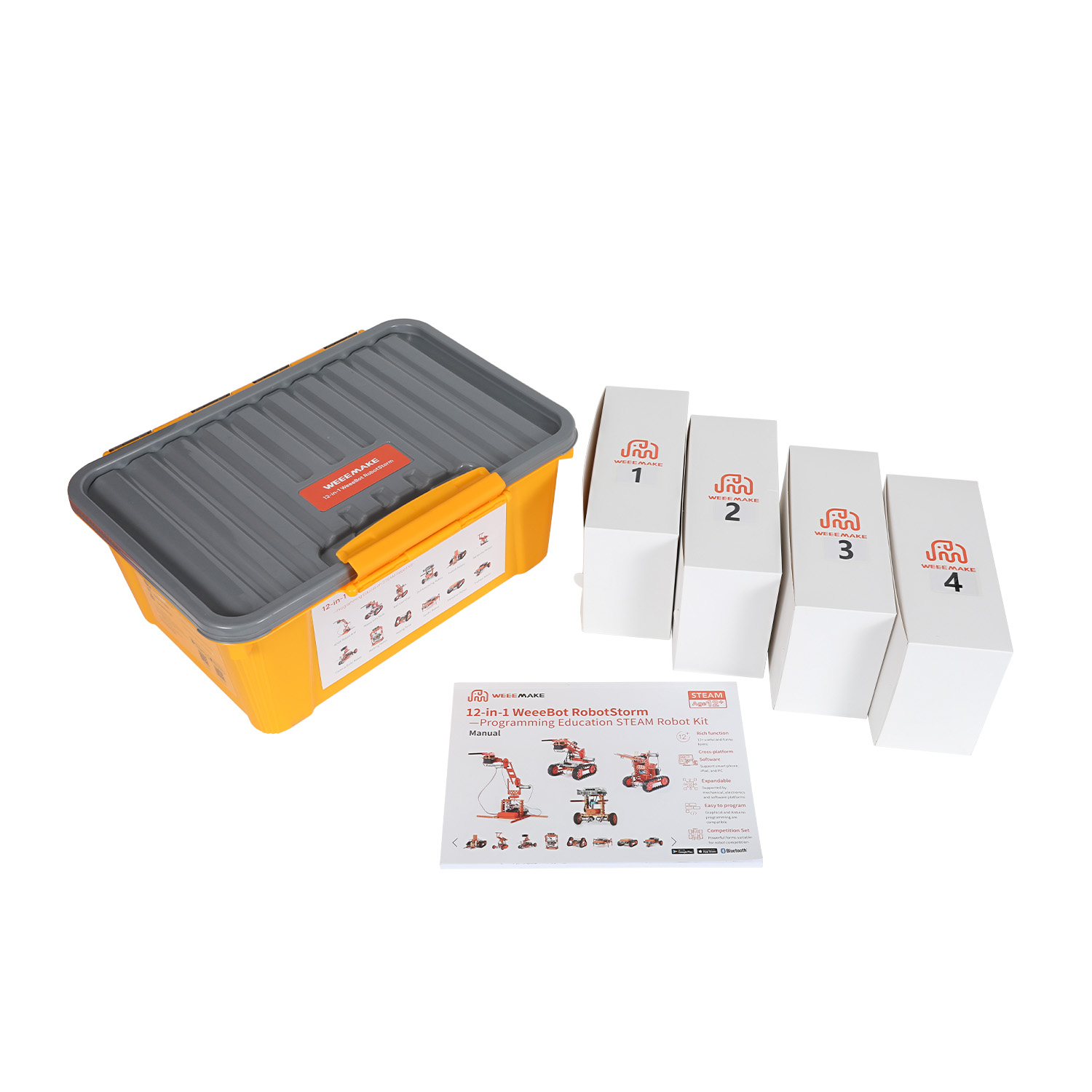

Kit Assembly & Packaging Details

ELF Mainboard Specifications

Name: ELF
Microchip: ATmega 328P
Ports:
- 1 x MCU port (supports ATmega 328p, ATmega2560, ESP32)
- 4 x RJ11 ports (connect to RJ11 sensors and modules)
- 2 x DC motor ports
- 6 x pin conversion ports (4 of which can function as stepper/encoder/DC motor ports)
- 1 x USB port
- 1 x Communication port (Bluetooth 2.4G)
Onboard Electronics:
- 1 x Buzzer
- 1 x On-board button
- 1 x On-board RGB LED

Included Sensors & Motors

1 x RGB ultrasonic sensor
1 x Double-way line-following sensor
1 x Gyroscope sensor
1 x Limit switch module
1 x Light sensor
1 x Sound sensor
1 x IR receiver
1 x RGB LED -8 (pins)
2 x Encoder/DC motor drivers
1 x IR remote control
1 x Bluetooth 4.1 module
1 x Bluetooth Dongle module
2 x Encoder DC Motor-25 (9V 188RPM)
1 x DC Motor-25 (50RPM)
1 x N20 DC motor (pre-installed in the robot gripper)

Customization options available for STEAM education kits.

Recommend Products

Details Images

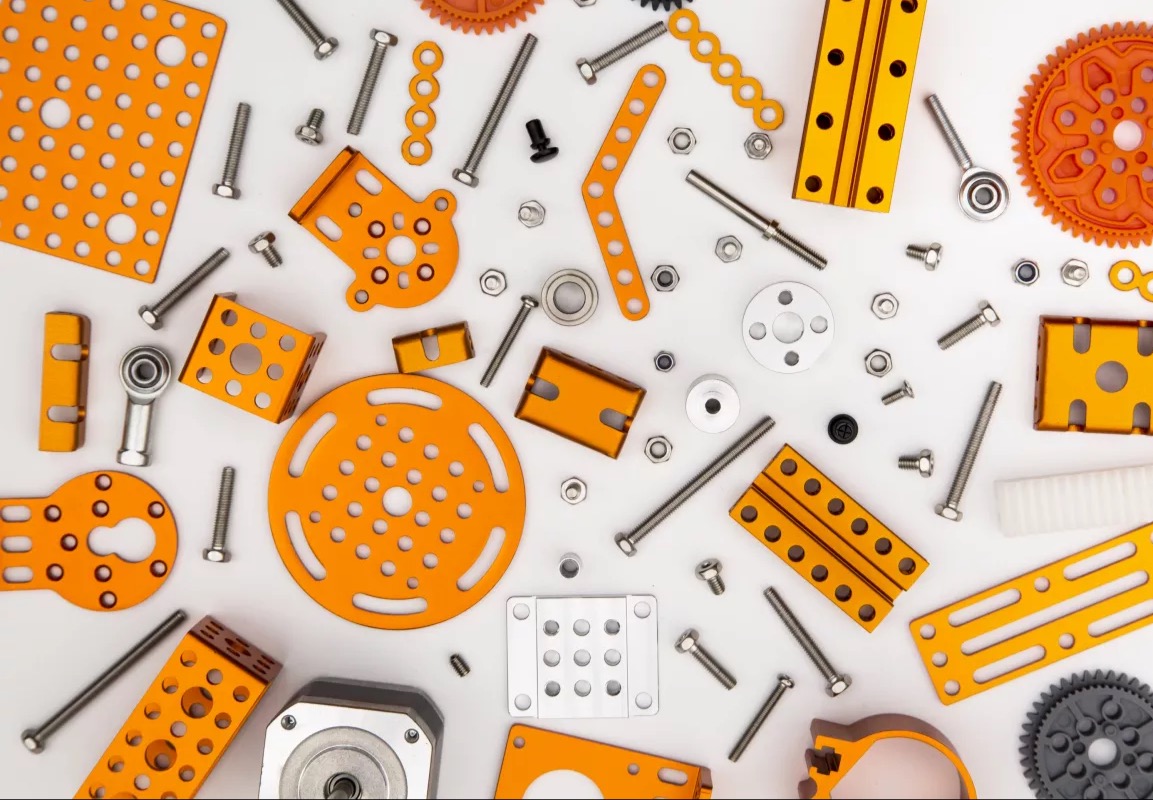

Powerful Parts Library

WeeeBot RobotStorm is a powerful parts library consisting of more than 450 parts. This kit consists of heavy-duty mechanical parts such as beams, plates, brackets, gears, grippers, tracks, shafts, wheels, hardware, and easy-to-use RJ11 electronic modules like the ELF mainboard, RGB ultrasonic sensor, Line-following sensor, gyroscope sensor, limit switch, RGB LED-8 module, light sensor, sound sensor, buzzer, IR receiver, Bluetooth module, Bluetooth dongle, etc.

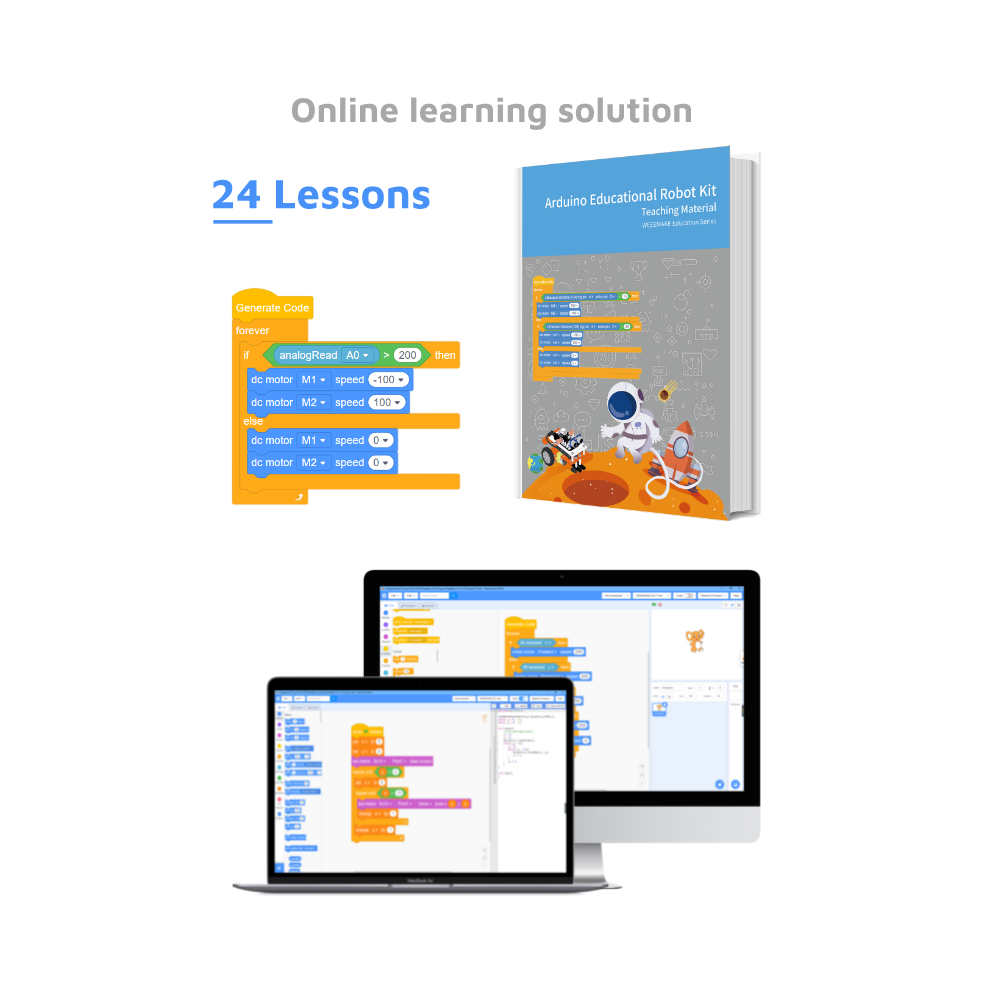

Cross-platform Software

Learning programming is way more fun when your code controls a robot. The cross-platform graphical programming software makes programming projects and interactive applications easier through simply dragging and dropping function blocks.

PC software: WeeeCode, Arduino IDE
Mobile APP: Weeemake (Android & iOS)

Products Usage

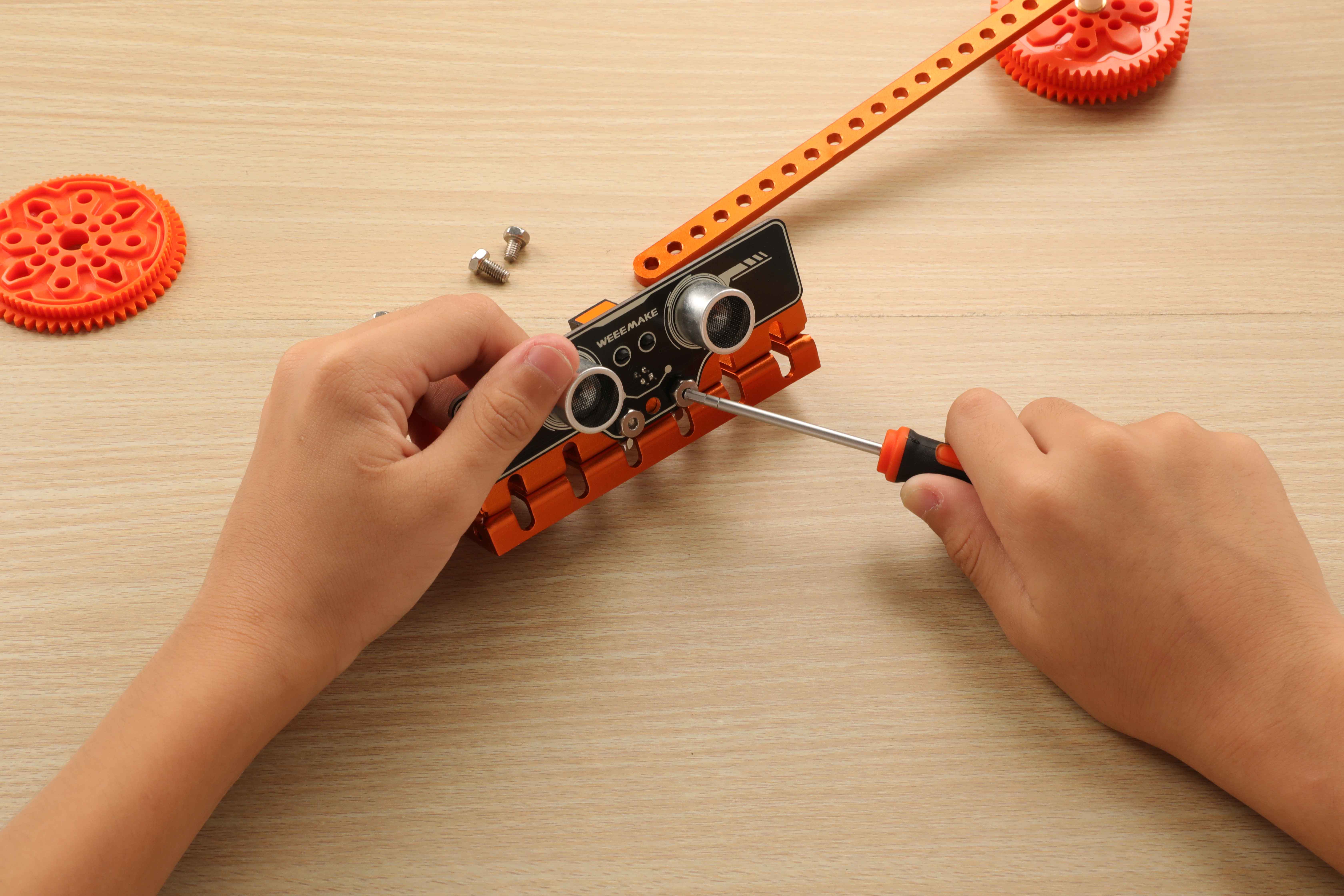

Build, Code, Create

Excellent choice for makers and students to build projects through graphical Scratch programming, and Arduino programming.
12 fun pre-set forms, supported by mechanical, electronic and software platforms.
Easy wiring, no soldering required. Modules in this kit are all equipped with RJ11 ports or anti-reverse pin ports for easy wiring. Just by connecting the modules together, robots can be built in a really quick way. All the wiring is simple and very clean.

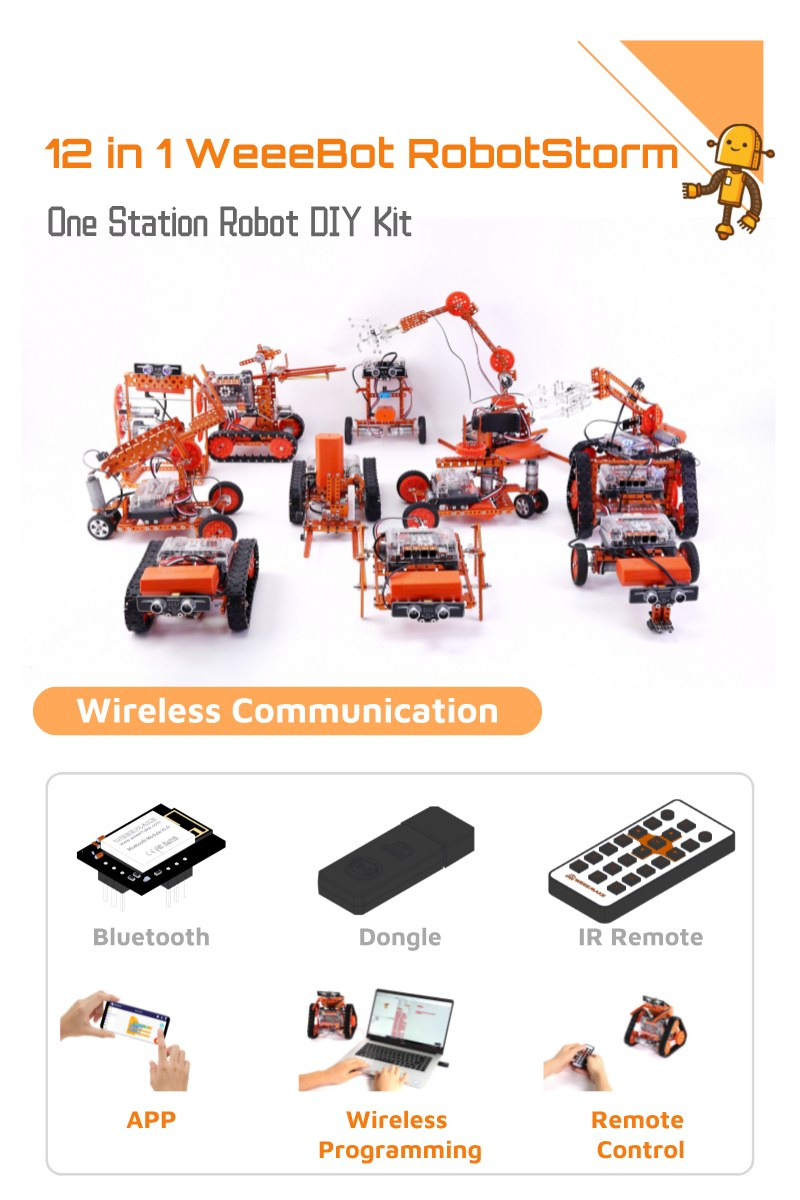

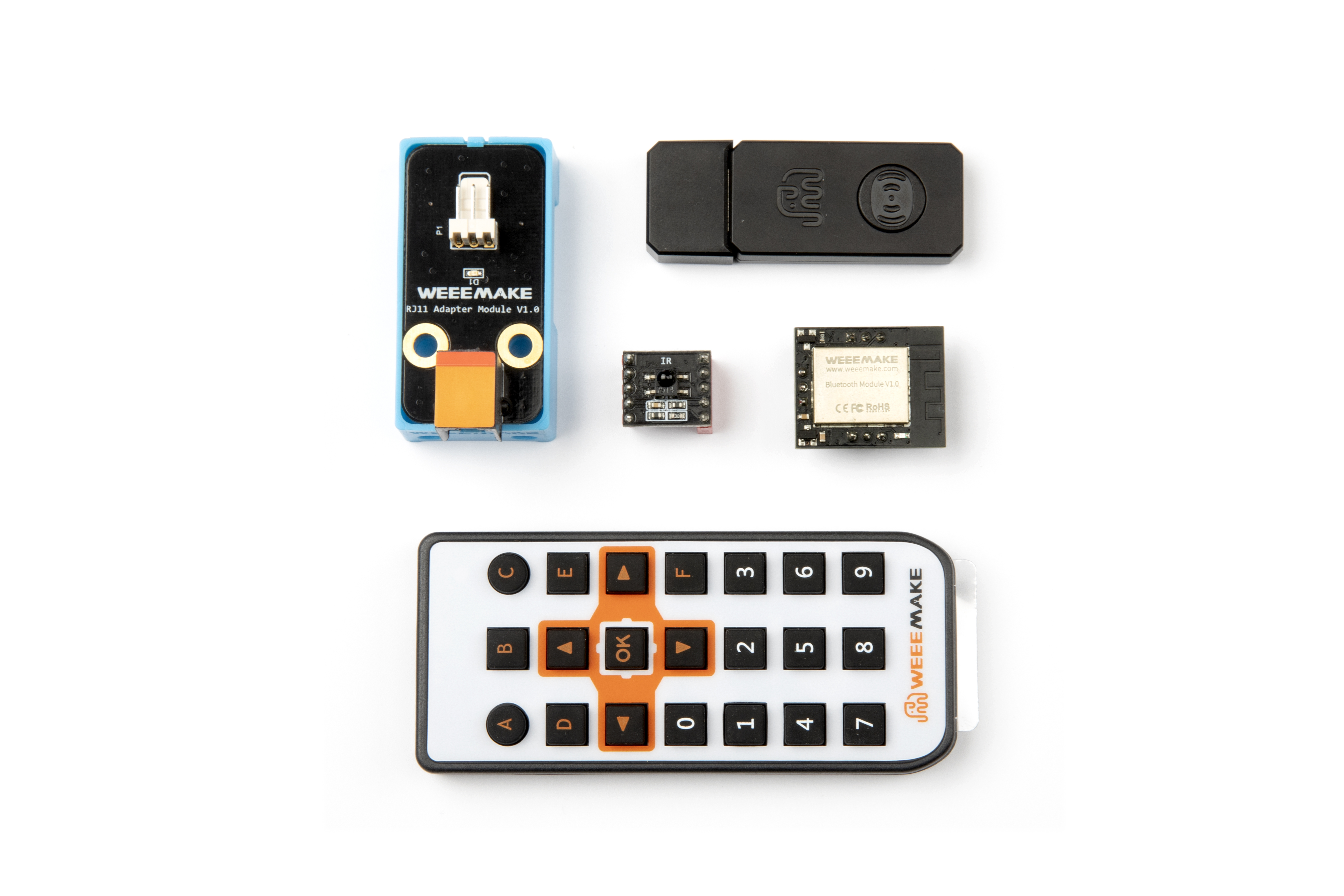

Wireless Control and Programming

WeeeBot Robotstorm kit supports IR remote control, Bluetooth APP control and coding, and 2.4G dongle wireless PC programming.

Get hands-on experience with quick building, easy-wiring, and convenient wireless programming. Start your creation immediately.

The only limitation is your imagination.

Frequently Asked Questions

What age group is the 12-in-1 WeeeBot Robotstorm suitable for?

The kit is designed for school students, makers, and STEAM educators. It is ideal for middle school, high school, and tech-hobbyists starting from ages 8 and up.

Do I need to solder any components to build the robots?

No, soldering is not required. All electronic modules in the kit are equipped with RJ11 ports or anti-reverse pin ports, making wiring clean, simple, and completely safe.

What programming software and systems are compatible with the kit?

You can program the robot using WeeeCode (graphical programming based on Scratch) on PCs, the Arduino IDE for advanced text programming, or the Weeemake App on iOS and Android devices.

Can I build forms other than the 12 pre-set robot structures?

Yes. With over 450 mechanical parts and a wide range of electronic sensors, you are not limited to the 12 pre-set designs. You can design and construct custom robots of your own.

How does the wireless programming functionality work?

The kit supports convenient wireless programming using a 2.4G wireless USB dongle to upload codes from your computer to the robot, or via Bluetooth using mobile apps.

What microchip is on the ELF mainboard? Can it be upgraded?

The ELF mainboard features a modular design with a replaceable microchip. The standard kit includes the ATmega 328P, but it also supports ESP32 and other microchips for expanded functionality.
