| Specification Category | Details |
|---|---|
| Inputs and onboard sensors: | 5-way joystick, 2x Button, Reset button, Light sensor, Microphone (with sound-sensor like functionality), Gyroscope-accelerometer |
| Outputs: | 1.44" full colour display, Speaker, 5x RGB LED |

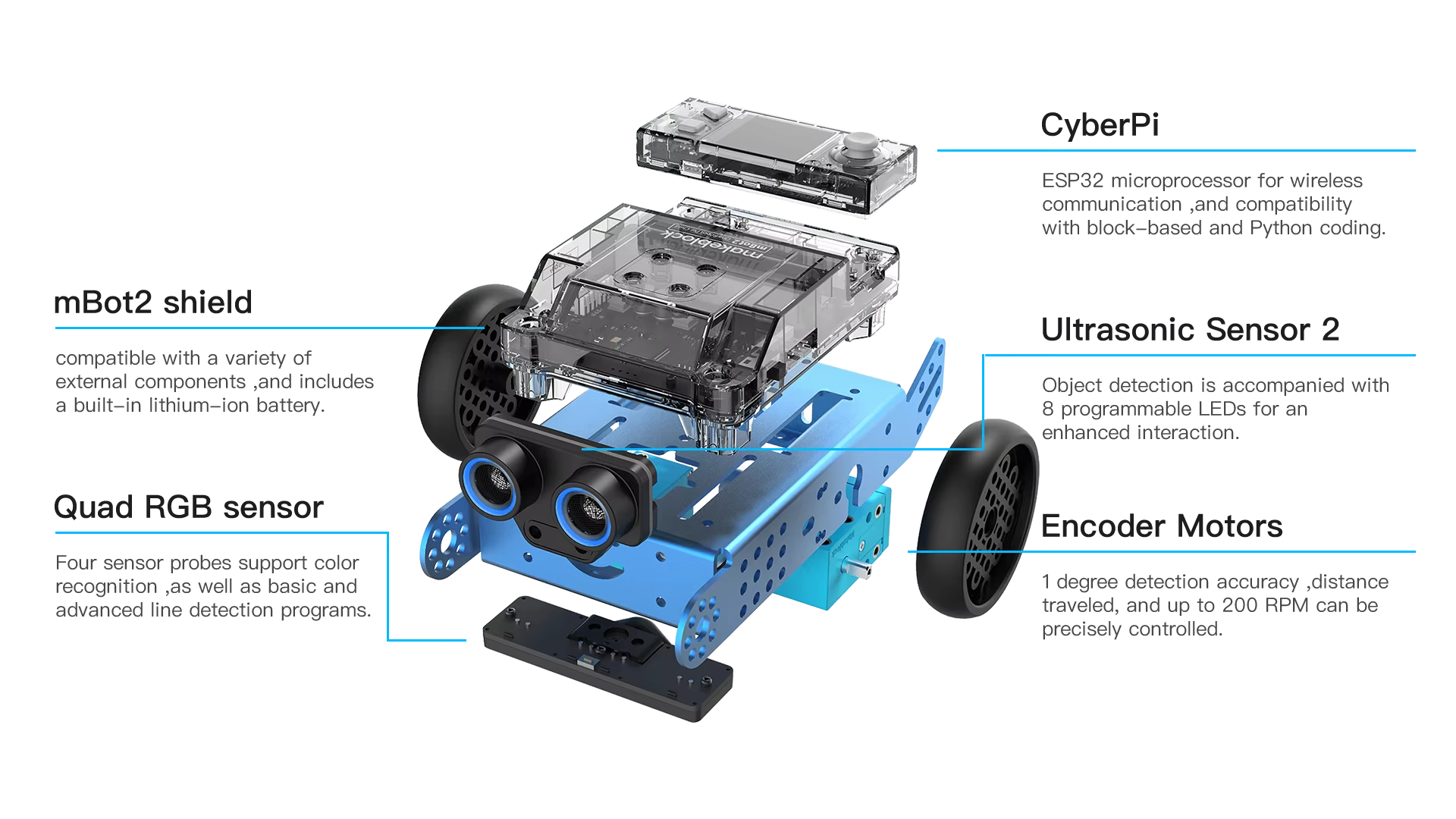

| Additional included modules: | Ultrasonic sensor, Quad RGB sensor |
| Wireless communication: | Bluetooth, Wi-Fi, Wi-Fi LAN |
| mBot2 Shield includes: | Built-in rechargeable battery, Two ports for encoder motors, Two ports for DC motors, Four ports for servo motors (some of the servo ports can connect to LED strips or Arduino analog/digital sensors) |
| Compatibility: | mBlock is available for PC, Tablet, and Browser, and is compatible with Windows, MacOS, Linux, and Chromebook micro: Python (upload mode): Windows, OSX, Linux, Chromebook, Web Python 3 (live mode): Windows, OSX, Linux, Web |
| Expandable electronic modules | mBuild port x1, connect 10+ components in series |
| Additional interfaces | 2-pin interface x2, 3-pin interface x4 |
